Telecamere - Siltel

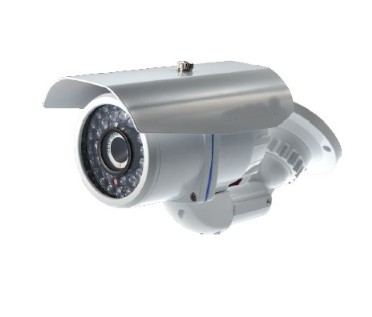

Telecamera a colori da esterno ed interno


1/3" SONY,700TVL,OSD,ATW,ATR,DWDR,DNR
Effio‐E+SONY811/810 ‐Bassa illuminazione

IR impermeabile  3‐Axis attacco
2.8/12mm Varifocale regolabile 2M Pixels Lente
36pcsΦ8 leds,IR Distanza 50M
Impermeabile IP66
Dimensioni:253x95x148mm

Specifiche:

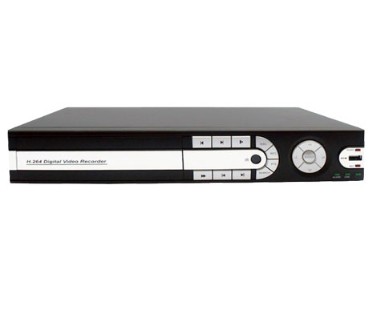

EN-2004DR-EN-2008DR-EN-2016DR
Main processor
High performance embedded microprocessor / Hi 3515 processor
Hi 3520 processor
Video Input
4 channel,BNC-8 channel,BNC-16 channel,BNC
Video Output
1TV BNC(1.0vp-p,75Ω), 1 VGA
Audio Input
4 channel, RCA- 8 channel,RCA-4 channel,RCA
Audio Output
1 channel,RCA(200-3000mV,5kΩ)
Display Split
1/4CH - 1/4/8/9CH - 1/4/8/9/16CH
Resolution
1360x768,1440x900,1280×1024,1024×768,800×600
Tour Display-Support-Privacy Masking
4 self-defined four-sided zones for privacy masking for each camera-OSD
Camera title, Time, Motion detection, Recording
Recording Resolution
D1(704×576 / 704×480) / CIF (352×288 / 352×240) / QCIF(176×144 / 176×120)
Recording FPS
Main Stream:
Ch1~Ch4 D1 (1-25/30FPS)--Ch1~CH8 CIF(1~25/30FPS) or CH1~CH8 D1 (1~12/15FPS)--Ch1~Ch16 CIF(1-25FPS) or Ch1~CH16 D1 (1~11FPS)
Playback Channel
1~4 Simultaneously--1~8 Simultaneously--1~16 Simultaneously
Playback Speed
CIF 100/120FPS--CIF 200/240FPS--CIF 400/480FPS
Backup Mode
Flash drive/USB HDD/USB CD/Network download/DVD RW(support build in DVD RW)
Alarm Input/Output
4 Channels (option)-- 8 Channels(option)--4 Channels

Network Funzioni:
TCP/IP,UDP,DHCP,DNS,IP Filter,PPPOE,DDNS,FTP,Email,Alarm Server,ARSP, WiFi
Hard Disk
2 SATA port,Max 4TB HDD supported or 1 SATA port WITH 1 DVD RW
USB lnterface 2 ports,1 for mouse control,1 for backup  S485-- PTZ control
Dimensioni  1U, 355mm×255mm×60mm(W×D×H)  Peso 3.5KG(senza HDD)
